ManufacturerDodge Industrial
UCP205

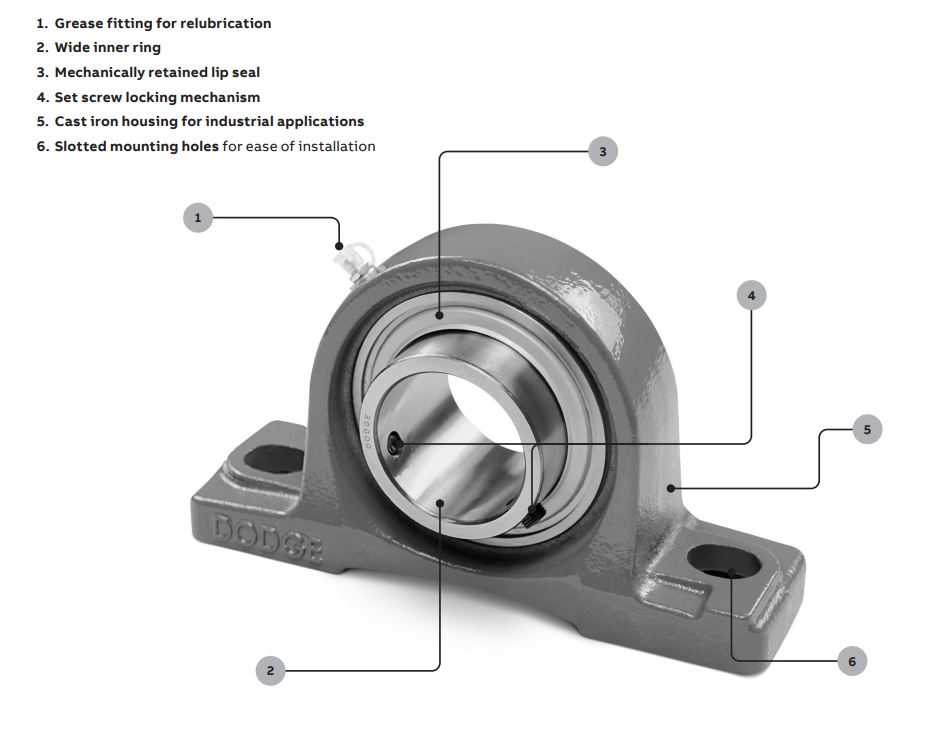

Dodge UCP pillow block with 25 mm shaft diameter -- governed dimensional reference for engineering selection.
Dimensional specifications
Values preserved from governed Dodge technical reference. Units as supplied (mm unless noted).
| Parameter | Value |
|---|---|
| Shaft diameter | 25 mm |
| Part number | UCP205 |
| A | 38 mm |
| B | 34.1 mm |
| H | 36.5 mm |
| H1 | 16 mm |
| H2 | 71 mm |
| J | 105 mm |
| L | 140 mm |
| N | 13 mm |
| N1 | 19 mm |
| S | 14.3 mm |
| Bolt size | M10 |
| Lubrication fitting thread | M6-1 |
Applications
General industrial drives, conveyors, fans, pumps and MRO replacement where setscrew locking mounted ball bearing units are specified.
Dimensional interchange research
Engineers often search for mounted bearing units by industry-standard designation families (for example UCP, UCF or UC series references) across multiple manufacturers. Similar model numbers may indicate related dimensional series, but load ratings, sealing, locking arrangement, materials and tolerances must be verified before substitution.
Golden Bearing Company does not claim OEM equivalence or performance interchange without verified manufacturer data. Share your existing part number, shaft size and application duty for engineering review.
