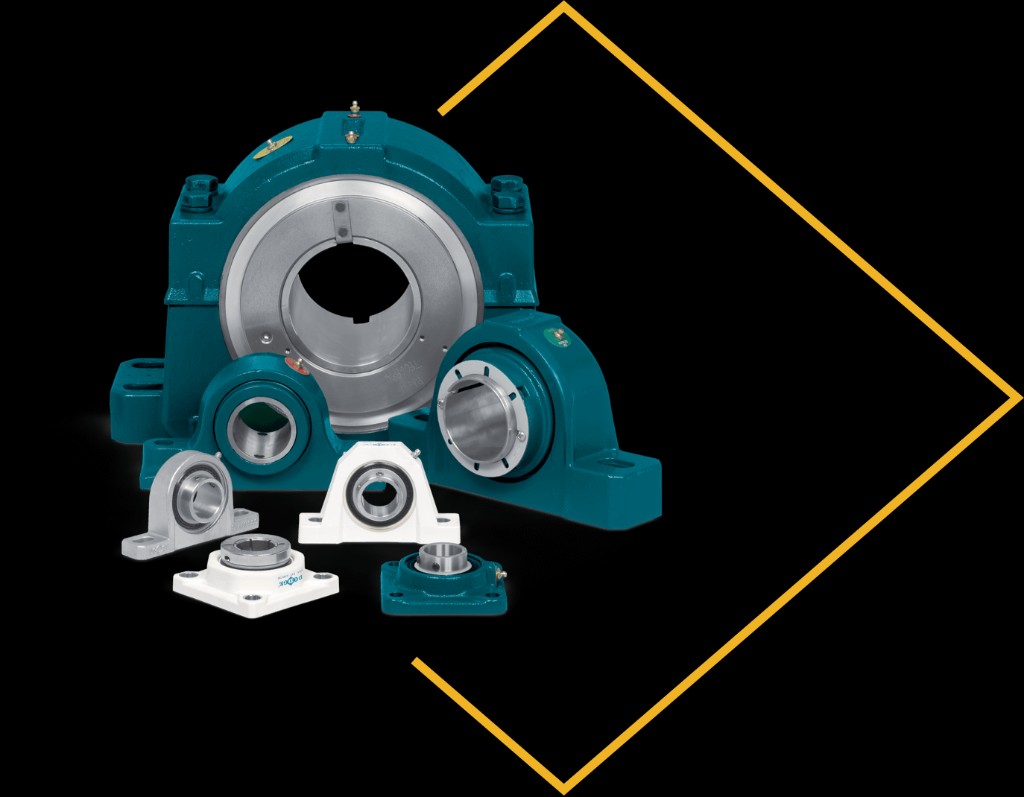

Dodge setscrew mounted ball bearing units

Dodge Industrial setscrew mounted ball bearing units combine a wide-inner-ring insert with a cast iron housing for conveyors, fans, pumps and general industrial machinery. This page covers UCP pillow block, UCF square flange, UCFL two-bolt flange, UCFC cartridge flange, UCT take-up and UC insert families with verified dimensional data supplied for engineering selection.

UCP pillow blocks mount from above on a flat base. UCF units use a four-bolt square flange. UCFL units use a two-bolt flange. UCFC units use a round cartridge flange. UCT take-up units support belt tensioning. UC inserts are used inside compatible housings when only the bearing component is required.

UCP204

Shaft dia. 20 mm Part number UCP204 Bolt size M10 H 33.3 mm

View specifications UCP205

Shaft dia. 25 mm Part number UCP205 Bolt size M10 H 36.5 mm

View specifications UCP206

Shaft dia. 30 mm Part number UCP206 Bolt size M14 H 42.9 mm

View specifications UCP207

Shaft dia. 35 mm Part number UCP207 Bolt size M14 H 47.6 mm

View specifications UCP208

Shaft dia. 40 mm Part number UCP208 Bolt size M14 H 49.2 mm

View specifications UCP209

Shaft dia. 45 mm Part number UCP209 Bolt size M14 H 54.0 mm

View specifications UCP210

Shaft dia. 50 mm Part number UCP210 Bolt size M16 H 57.2 mm

View specifications UCP211

Shaft dia. 55 mm Part number UCP211 Bolt size M16 H 63.5 mm

View specifications UCP212

Shaft dia. 60 mm Part number UCP212 Bolt size M16 H 69.8 mm

View specifications UCP213

Shaft dia. 65 mm Part number UCP213 Bolt size M20 H 76.2 mm

View specifications UCP214

Shaft dia. 70 mm Part number UCP214 Bolt size M20 H 79.4 mm

View specifications UCP215

Shaft dia. 75 mm Part number UCP215 Bolt size M20 H 82.6 mm

View specifications UCP216

Shaft dia. 80 mm Part number UCP216 Bolt size M20 H 88.9 mm

View specifications UCP217

Shaft dia. 85 mm Part number UCP217 Bolt size M20 H 95.2 mm

View specifications UCP218

Shaft dia. 90 mm Part number UCP218 Bolt size M22 H 101.6 mm

View specifications

UCF204

Shaft dia. 20 mm Part number UCF204 Bolt size M10 L 86 mm

View specifications UCF205

Shaft dia. 25 mm Part number UCF205 Bolt size M14 L 95 mm

View specifications UCF206

Shaft dia. 30 mm Part number UCF206 Bolt size M14 L 108 mm

View specifications UCF207

Shaft dia. 35 mm Part number UCF207 Bolt size M14 L 117 mm

View specifications UCF208

Shaft dia. 40 mm Part number UCF208 Bolt size M14 L 130 mm

View specifications UCF209

Shaft dia. 45 mm Part number UCF209 Bolt size M16 L 137 mm

View specifications UCF210

Shaft dia. 50 mm Part number UCF210 Bolt size M16 L 143 mm

View specifications UCF211

Shaft dia. 55 mm Part number UCF211 Bolt size M16 L 162 mm

View specifications UCF212

Shaft dia. 60 mm Part number UCF212 Bolt size M20 L 175 mm

View specifications UCF213

Shaft dia. 65 mm Part number UCF213 Bolt size M20 L 187 mm

View specifications UCF214

Shaft dia. 70 mm Part number UCF214 Bolt size M20 L 193 mm

View specifications UCF215

Shaft dia. 75 mm Part number UCF215 Bolt size M20 L 200 mm

View specifications UCF216

Shaft dia. 80 mm Part number UCF216 Bolt size M20 L 208 mm

View specifications UCF217

Shaft dia. 85 mm Part number UCF217 Bolt size M20 L 220 mm

View specifications UCF218

Shaft dia. 90 mm Part number UCF218 Bolt size M20 L 235 mm

View specifications

UCFL204

Shaft dia. 20 mm Part number UCFL204 Bolt size M10 H 113 mm

View specifications UCFL205

Shaft dia. 25 mm Part number UCFL205 Bolt size M14 H 130 mm

View specifications UCFL206

Shaft dia. 30 mm Part number UCFL206 Bolt size M14 H 148 mm

View specifications UCFL207

Shaft dia. 35 mm Part number UCFL207 Bolt size M14 H 161 mm

View specifications UCFL208

Shaft dia. 40 mm Part number UCFL208 Bolt size M14 H 175 mm

View specifications UCFL209

Shaft dia. 45 mm Part number UCFL209 Bolt size M16 H 188 mm

View specifications UCFL210

Shaft dia. 50 mm Part number UCFL210 Bolt size M16 H 198 mm

View specifications UCFL211

Shaft dia. 55 mm Part number UCFL211 Bolt size M16 H 224 mm

View specifications UCFL212

Shaft dia. 60 mm Part number UCFL212 Bolt size M20 H 250 mm

View specifications UCFL213

Shaft dia. 65 mm Part number UCFL213 Bolt size M20 H 258 mm

View specifications UCFL214

Shaft dia. 70 mm Part number UCFL214 Bolt size M20 H 265 mm

View specifications UCFL215

Shaft dia. 75 mm Part number UCFL215 Bolt size M20 H 275 mm

View specifications UCFL216

Shaft dia. 80 mm Part number UCFL216 Bolt size M20 H 290 mm

View specifications UCFL217

Shaft dia. 85 mm Part number UCFL217 Bolt size M20 H 305 mm

View specifications UCFL218

Shaft dia. 90 mm Part number UCFL218 Bolt size M20 H 320 mm

View specifications

UCFC204

Shaft dia. 20 mm Part number UCFC204 Bolt size M10 L 100 mm

View specifications UCFC205

Shaft dia. 25 mm Part number UCFC205 Bolt size M10 L 115 mm

View specifications UCFC206

Shaft dia. 30 mm Part number UCFC206 Bolt size M10 L 125 mm

View specifications UCFC207

Shaft dia. 35 mm Part number UCFC207 Bolt size M12 L 135 mm

View specifications UCFC208

Shaft dia. 40 mm Part number UCFC208 Bolt size M12 L 145 mm

View specifications UCFC209

Shaft dia. 45 mm Part number UCFC209 Bolt size M14 L 160 mm

View specifications UCFC210

Shaft dia. 50 mm Part number UCFC210 Bolt size M14 L 165 mm

View specifications UCFC211

Shaft dia. 55 mm Part number UCFC211 Bolt size M16 L 185 mm

View specifications UCFC212

Shaft dia. 60 mm Part number UCFC212 Bolt size M16 L 195 mm

View specifications UCFC213

Shaft dia. 65 mm Part number UCFC213 Bolt size M16 L 205 mm

View specifications UCFC214

Shaft dia. 70 mm Part number UCFC214 Bolt size M16 L 215 mm

View specifications UCFC215

Shaft dia. 75 mm Part number UCFC215 Bolt size M16 L 220 mm

View specifications UCFC216

Shaft dia. 80 mm Part number UCFC216 Bolt size M20 L 240 mm

View specifications UCFC217

Shaft dia. 85 mm Part number UCFC217 Bolt size M20 L 250 mm

View specifications UCFC218

Shaft dia. 90 mm Part number UCFC218 Bolt size M20 L 265 mm

View specifications

UCT204

Shaft dia. 20 mm Part number UCT204 H 89 mm L 94 mm

View specifications UCT205

Shaft dia. 25 mm Part number UCT205 H 89 mm L 97 mm

View specifications UCT206

Shaft dia. 30 mm Part number UCT206 H 101 mm L 113 mm

View specifications UCT207

Shaft dia. 35 mm Part number UCT207 H 102 mm L 129 mm

View specifications UCT208

Shaft dia. 40 mm Part number UCT208 H 113 mm L 144 mm

View specifications UCT209

Shaft dia. 45 mm Part number UCT209 H 116 mm L 144 mm

View specifications UCT210

Shaft dia. 50 mm Part number UCT210 H 116 mm L 149 mm

View specifications UCT211

Shaft dia. 55 mm Part number UCT211 H 144 mm L 171 mm

View specifications UCT212

Shaft dia. 60 mm Part number UCT212 H 145 mm L 194 mm

View specifications

UC204

Shaft dia. 20 mm Part number UC204 Limiting speed 4,800 RPM ds M6 X 1.0

View specifications UC205

Shaft dia. 25 mm Part number UC205 Limiting speed 4,000 RPM ds M6 X 1.0

View specifications UC206

Shaft dia. 30 mm Part number UC206 Limiting speed 3,400 RPM ds M6 X 1.0

View specifications UC207

Shaft dia. 35 mm Part number UC207 Limiting speed 3,000 RPM ds M8 X 1.0

View specifications UC208

Shaft dia. 40 mm Part number UC208 Limiting speed 2,600 RPM ds M8 X 1.0

View specifications UC209

Shaft dia. 45 mm Part number UC209 Limiting speed 2,400 RPM ds M8 X 1.0

View specifications UC210

Shaft dia. 50 mm Part number UC210 Limiting speed 2,200 RPM ds M10 X 1.0

View specifications UC211

Shaft dia. 55 mm Part number UC211 Limiting speed 2,000 RPM ds M10 X 1.0

View specifications UC212

Shaft dia. 60 mm Part number UC212 Limiting speed 1,800 RPM ds M10 X 1.0

View specifications UC213

Shaft dia. 65 mm Part number UC213 Limiting speed 1,700 RPM ds M10 X 1.0

View specifications UC214

Shaft dia. 70 mm Part number UC214 Limiting speed 1,600 RPM ds M12 X 1.5

View specifications UC215

Shaft dia. 75 mm Part number UC215 Limiting speed 1,500 RPM ds M12 X 1.5

View specifications UC216

Shaft dia. 80 mm Part number UC216 Limiting speed 1,400 RPM ds M12 X 1.5

View specifications UC217

Shaft dia. 85 mm Part number UC217 Limiting speed 1,300 RPM ds M12 X 1.5

View specifications UC218

Shaft dia. 90 mm Part number UC218 Limiting speed 1,200 RPM ds M12 X 1.5

View specifications

Confirm shaft diameter, housing style and bolt spacing against the dimensional table for each model.

Review seal type, lubrication interval and operating temperature for the environment.

Verify load and speed against manufacturer catalogue ratings before substitution from another brand.

Send part number, quantity and duty data for authorised distributor quotation support.

Dimensional interchange research

Engineers often search for mounted bearing units by industry-standard designation families (for example UCP, UCF or UC series references) across multiple manufacturers. Similar model numbers may indicate related dimensional series, but load ratings, sealing, locking arrangement, materials and tolerances must be verified before substitution.

Golden Bearing Company does not claim OEM equivalence or performance interchange without verified manufacturer data. Share your existing part number, shaft size and application duty for engineering review.

Request an Engineering Quote

Share shaft bore, speed, torque duty and ordering designation for Dodge mounted bearings. Golden Bearing Company is an authorised Dodge Industrial distributor.
