ManufacturerDodge Industrial

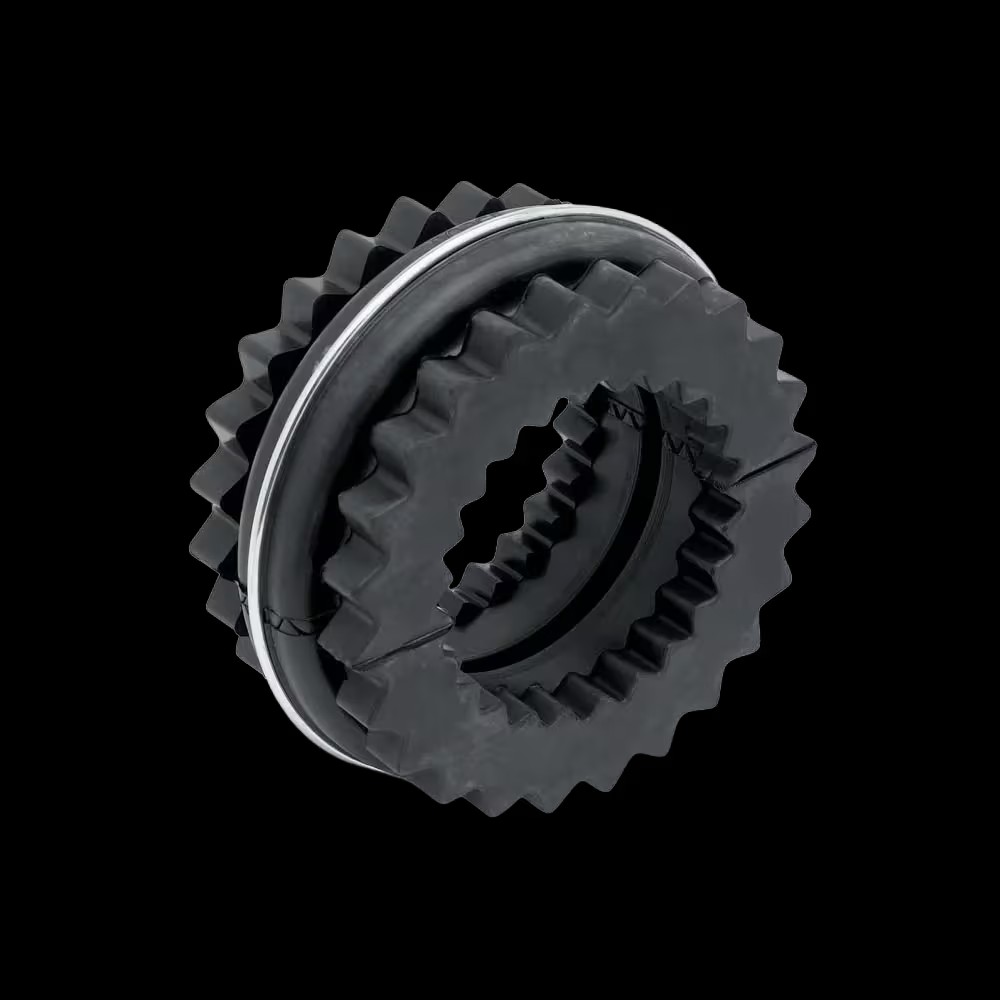

Dodge D-Flex Size 13 EPDM E Two Piece Sleeve Element
Dodge D-Flex elastomeric sleeve coupling element size 13 - EPDM E Two Piece configuration with catalogue ratings from reference data.
Primary catalogue part number
021990
Dodge Element P/N
Catalogue ratings
Values preserved from supplied Dodge D-Flex catalogue reference.
| Parameter | Value |
|---|---|
| Element size | 13 |
| Material / configuration | EPDM - EPDM E Two Piece |
| Rated torque | 14999 in-lbs |
| HP/100 RPM | 23.79 |
| Maximum RPM | 2400 RPM |
| Max bore Type S (straight) | 4-1/2 |
| Max bore Type SC (bushed) | 3-3/8 |
| Max bore Type B (bushed) | 3-15/16 |
Interchange / cross-reference
Reference equivalents for engineering discovery. Verify torque, bore and element geometry before substitution.
| TB Woods Sure-Flex reference | Lovejoy S-Flex reference | Dodge D-Flex |
|---|---|---|
| 13E SLEEVE | 68514435464 | 021990 |
D-Flex differentiators
- Upgraded EPDM and Neoprene formulations with 32% torque rating increase per manufacturer documentation
- 65-degree setscrew flange design
- ASTM B117 corrosion-resistant flanges
- Maintenance-free sleeve coupling concept
Request an Engineering Quote
Share shaft bore, speed, torque duty and ordering designation for Size 13. Golden Bearing Company is an authorised Dodge Industrial distributor.
