ManufacturerDodge Industrial

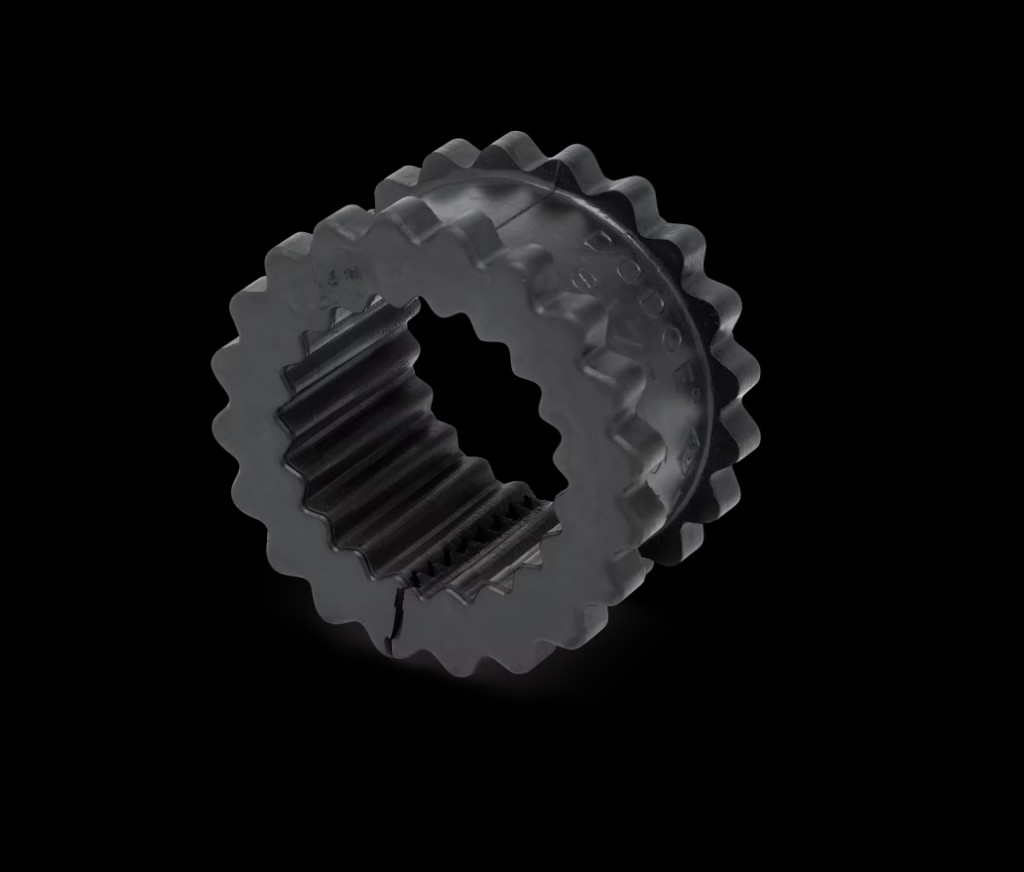

Dodge D-Flex Size 4 EPDM JES Split Sleeve Element
Dodge D-Flex elastomeric sleeve coupling element size 4 - EPDM JES Split configuration with catalogue ratings from reference data.
Primary catalogue part number
004244
Dodge Element P/N
Catalogue ratings
Values preserved from supplied Dodge D-Flex catalogue reference.
| Parameter | Value |
|---|---|
| Element size | 4 |
| Material / configuration | EPDM - EPDM JES Split |
| Rated torque | 159 in-lbs |
| HP/100 RPM | 0.25 |
| Maximum RPM | 7600 RPM |
| Max bore Type J (straight) | 1 |
Interchange / cross-reference
Reference equivalents for engineering discovery. Verify torque, bore and element geometry before substitution.
| TB Woods Sure-Flex reference | Lovejoy S-Flex reference | Dodge D-Flex |
|---|---|---|
| 4JS SLEEVE | 68514436695 | 004244 |
D-Flex differentiators
- Upgraded EPDM and Neoprene formulations with 32% torque rating increase per manufacturer documentation
- 65-degree setscrew flange design
- ASTM B117 corrosion-resistant flanges
- Maintenance-free sleeve coupling concept
