Manufacturer Dodge Industrial
D-Flex
Sleeve element

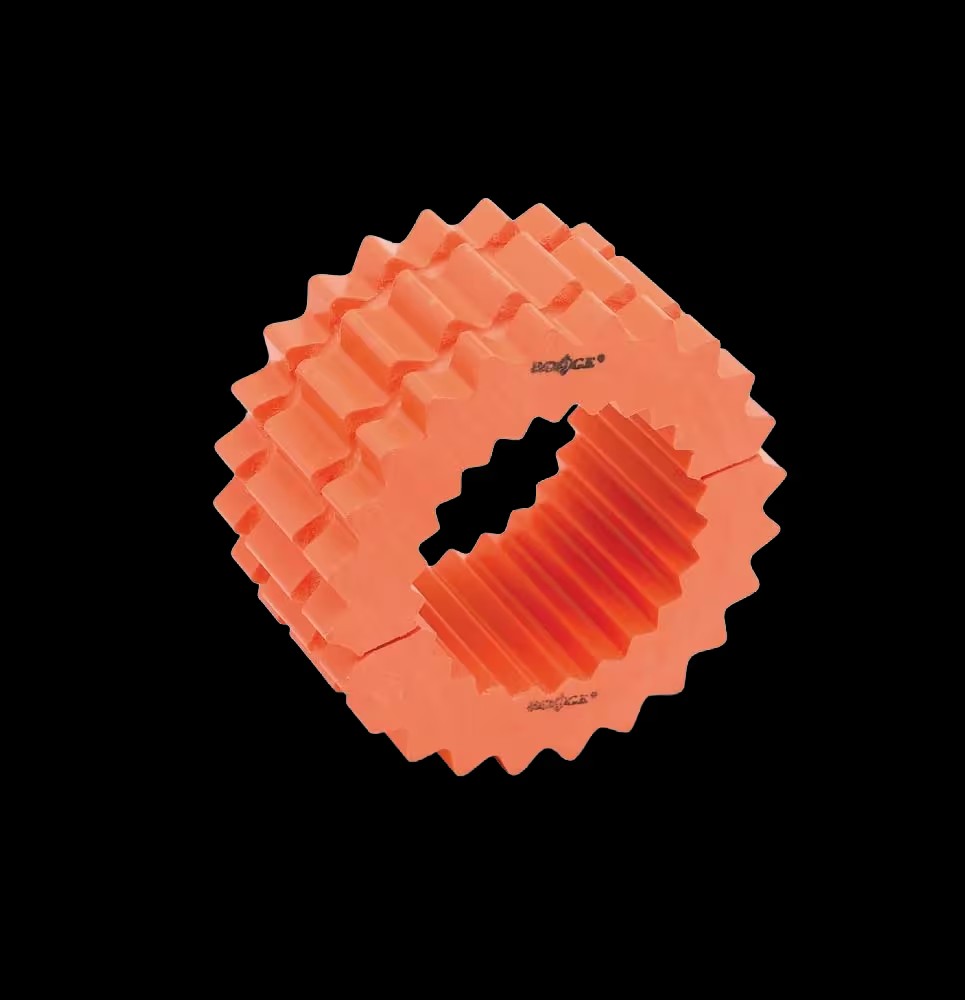

Dodge D-Flex Size 6
Availability
Confirm at quotation
Dodge Industrial · D-Flex · Elastomeric sleeve coupling · Size 6 · Authorised Distributor
Size
6
Material
Hytrel
Configuration
Hytrel-HS-Split
Element P/N
022232
- Manufacturer
- Dodge Industrial
- Product Family
- D-Flex Couplings
- Series
- D-Flex
- Designation
- Size 6 Hytrel-HS-Split
- Configuration
- Sleeve element
Dodge D-Flex size 6 Hytrel-HS-Split sleeve element catalogue data.
- Product Type
- Elastomeric sleeve coupling
- Industry
- Industrial power transmission
Why Source Through Golden Bearing Company
Authorised industrial distributor
Engineering Support
Duty review, bore selection, and application engineering assistance
Authorised Manufacturer Data
Specifications published exactly as manufacturer catalogue data
Technical Assistance
Configuration, interchangeability, and spare element guidance
Product Overview
Dodge D-Flex size 6 Hytrel Hytrel HS Split sleeve element P/N 022232.
Commercial Identification
Authoritative procurement identifiers for ERP, RFQ, and purchase order entry. Copy values directly where shown.
- Manufacturer
- Dodge Industrial
- Product Family
- D-Flex Couplings
- Series
- D-Flex
- Designation
- Size 6 Hytrel-HS-Split
- Configuration
- Sleeve element
Selection Guidance
Engineering checkpoints for Dodge D-Flex Size 6.
Engineering Specifications
Dodge catalogue values for Size 6. Parameters not tabulated are omitted rather than estimated.
Catalogue specifications
| Element size | 6 |
|---|---|
| Material / construction | Hytrel - Type HS two-piece split |
| Primary element P/N | 022232 |
| Flange compatibility | Type S and Type SC flanges only |
| Rated torque | 1800 in-lbs |
| HP/100 RPM | 2.9 |
| Maximum RPM | 6000 RPM |
| Angular misalignment | 1/4 deg |
| Parallel offset | 0.010 in |
| Axial end float | +/- 0.060 in |
| Torsional stiffness | 10000 in-lbs/rad |
| Torsional wind-up | 7.0 deg |
Dimensions
Flange bore and mounting envelope data from Dodge D-Flex catalogue reference.
Element size
6
Material / construction
Hytrel - Type HS two-piece split
Primary element P/N
022232
| Element size | 6 |
|---|---|
| Material / construction | Hytrel - Type HS two-piece split |
| Primary element P/N | 022232 |
Dodge Catalogue Reference
Published data basis
Engineering values on this page follow Dodge Industrial catalogue reference for Dodge D-Flex Size 6.
Applications
Typical Dodge D-Flex applications.
Sleeve coupling
EPDM and Neoprene drives
Hytrel high-torque layouts
Maintenance-free coupling
Configuration and Identification
Element configuration
Size 6 Hytrel Hytrel HS Split - P/N 022232.
Flange compatibility
Type S and Type SC flanges only.
Engineering cross-reference
Reference equivalents for engineering discovery. Catalogue mapping does not imply universal dimensional identity or performance equivalence.
Catalogue reference mapping
Verify torque, bore, speed, BSE and flange type before any cross-manufacturer substitution.
| Dodge Hytrel | TB Woods | Lovejoy |
|---|---|---|
| 022232 | 6HS | HS6 |
Frequently Asked Questions
Engineering and procurement answers for specification review and quotation.
What is Dodge D-Flex size 6?
Dodge D-Flex size 6 Hytrel-HS-Split element P/N 022232 per Dodge catalogue reference.
How do I request a quote?
Send shaft bore, torque duty, speed and configuration. Golden Bearing Company is an authorised Dodge Industrial distributor.
Request an Engineering Quote
Share Dodge Size 6 Hytrel-HS-Split designation, shaft bore, torque duty and configuration for engineering quotation.
