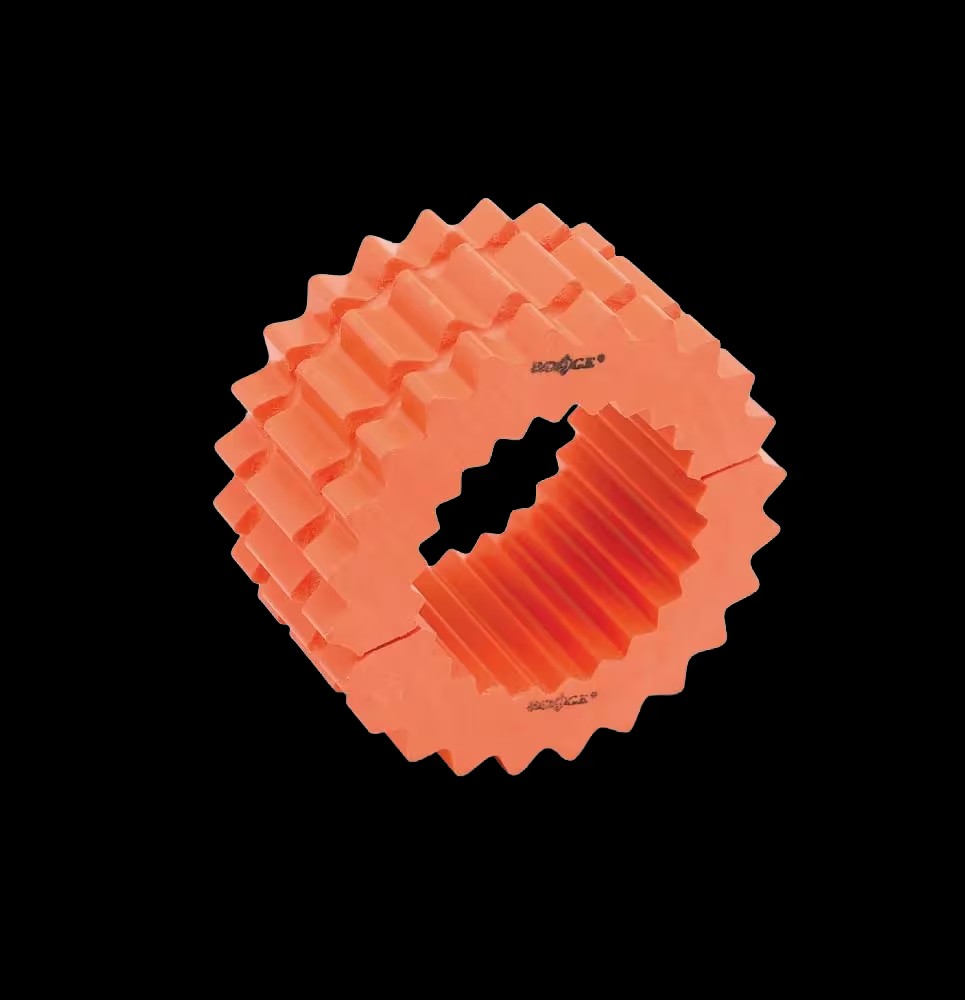

Dodge D-Flex Size 7 Hytrel Type HS two-piece split Sleeve Element
Dodge D-Flex Hytrel co-polyester sleeve element size 7 - Type HS two-piece split configuration with catalogue ratings from manufacturer reference data.
Primary catalogue part number
022233
Dodge Hytrel Element P/N
Engineering compatibility: Hytrel elements are for Type S and Type SC flanges only. They are not direct replacements for Type J or Type B flange configurations.
Catalogue ratings
Values preserved from supplied Dodge D-Flex Hytrel manufacturer reference.
| Parameter | Value |
|---|---|
| Element size | 7 |
| Material / construction | Hytrel - Type HS two-piece split |
| Flange compatibility | Type S and Type SC flanges only |
| Rated torque | 2875 in-lbs |
| HP/100 RPM | 4.6 |
| Maximum RPM | 5250 RPM |
| Angular misalignment | 1/4 deg |
| Parallel offset | 0.012 in |
| Axial end float | +/- 0.060 in |
| Torsional stiffness | 20000 in-lbs/rad |
| Torsional wind-up | 7.0 deg |
Interchange / cross-reference
Reference equivalents for size 7 Type HS two-piece split configuration. Verify torque, bore, flange type and element geometry before substitution.
| TB Woods reference | Dodge Hytrel reference | Lovejoy reference |
|---|---|---|
| 7HS | 022233 | HS7 |
Hytrel value proposition
- Four times the power of standard EPDM or Neoprene sleeves of identical size per manufacturer documentation
- Operating temperature range -65 F to +250 F (-54 C to +121 C) per manufacturer documentation
- Excellent chemical, petroleum and mineral oil resistance per manufacturer documentation
- Type H one-piece solid elements sizes 6 through 12; Type HS two-piece split elements sizes 6 through 14
Manufacturer documentation states Hytrel transmits four times the power of standard EPDM or Neoprene sleeves of identical size, supporting downsizing in new layouts where source-qualified.
Split construction advantage
Type HS two-piece split elements include a heavy-duty wire retaining ring, allowing installation and replacement without moving connected equipment.
Request an Engineering Quote
Share shaft bore, speed, torque duty and ordering designation for Size 7 Hytrel. Golden Bearing Company is an authorised Dodge Industrial distributor.
