Manufacturer Dodge Industrial
Raptor ES
Spacer
Dodge Raptor ES20
Availability
Confirm at quotation
Dodge Industrial · Raptor ES · Elastomeric spacer coupling · ES20 · Authorised Distributor
Max torque
2308 in-lbs
BSE range
2.76 - 7.08 in
Max RPM
4800 RPM
Spacer P/N
017069
- Manufacturer
- Dodge Industrial
- Product Family
- Raptor Couplings
- Series
- Raptor ES
- Designation
- ES20
- Configuration
- Spacer
Dodge Raptor ES20 spacer elastomeric coupling catalogue data.
- Product Type
- Elastomeric spacer coupling
- Industry
- Industrial power transmission
Why Source Through Golden Bearing Company
Authorised industrial distributor
Engineering Support
Duty review, bore selection, and application engineering assistance
Authorised Manufacturer Data
Specifications published exactly as manufacturer catalogue data
Technical Assistance
Configuration, interchangeability, and spare element guidance
Product Overview

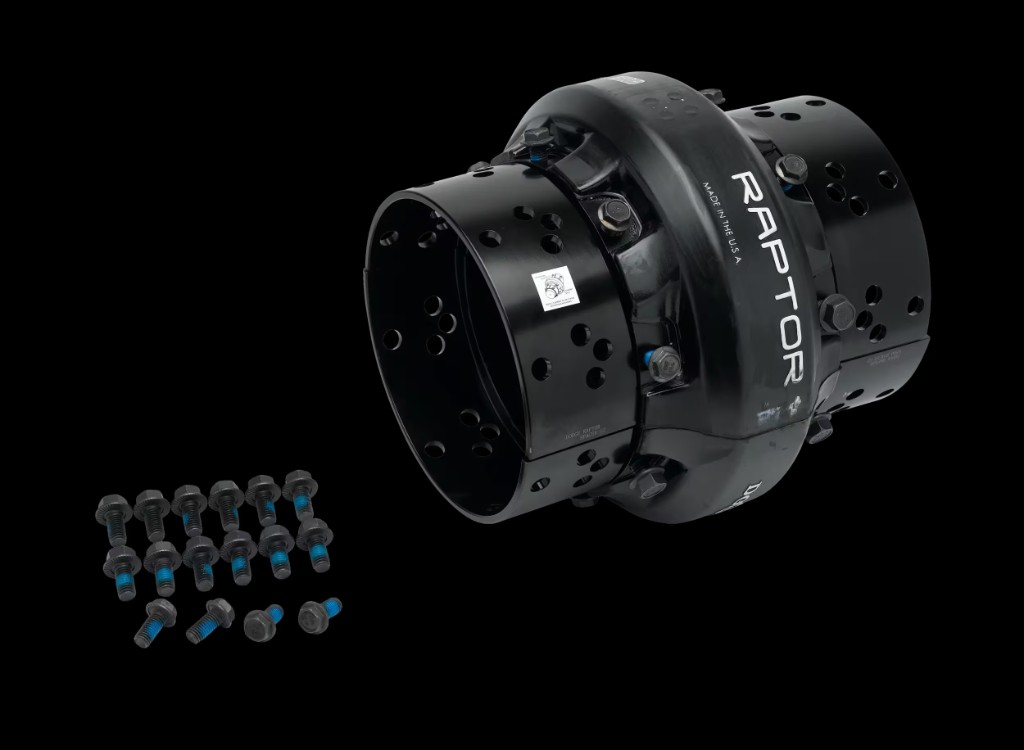

Dodge Raptor ES20 is a spacer elastomeric coupling with BSE range 2.76 to 7.08 in, maximum rated torque 2308 in-lbs and standard full spacer P/N 017069.
Commercial Identification
Authoritative procurement identifiers for ERP, RFQ, and purchase order entry. Copy values directly where shown.
- Manufacturer
- Dodge Industrial
- Product Family
- Raptor Couplings
- Series
- Raptor ES
- Designation
- ES20
- Configuration
- Spacer
Selection Guidance
Engineering checkpoints for Dodge Raptor ES20.
Engineering Specifications
Dodge catalogue values for ES20. Parameters not tabulated are omitted rather than estimated.
Catalogue specifications
| Size designation | ES20 |
|---|---|
| Configuration | Spacer (ES series) |
| Standard full spacer P/N | 017069 |
| Maximum rated torque | 2308 in-lbs |
| Maximum RPM | 4800 RPM |
| BSE minimum | 2.76 in |
| BSE maximum | 7.08 in |
| Total length range | 9.38 to 11.40 in |
| Spacer element P/N (reference) | 101776 |
| Standard half spacer P/N (reference) | 017187 |
| Armored full spacer P/N (reference) | 017161 |
| Armored half spacer P/N (reference) | 017223 |
| High-speed ring note | High-speed rings optional for ES20; required to achieve close-coupled maximum speed. |
Dimensions
Spacer envelope dimensions from Dodge Raptor ES catalogue reference.
BSE range
2.76 - 7.08 in
Max torque
2308 in-lbs
Max RPM
4800 RPM
| BSE minimum | 2.76 in |
|---|---|
| BSE maximum | 7.08 in |
| Total length minimum | 9.38 in |
| Total length maximum | 11.40 in |
Dodge Catalogue Reference
Published data basis
Engineering values on this page follow Dodge Industrial catalogue reference for Dodge Raptor ES20.
Applications
Typical Dodge Raptor ES applications.
ANSI pump layouts
Spacer coupling
Modular spacer elements
Process industry drives
Configuration and Identification
Spacer configuration
BSE range 2.76 to 7.08 in. Standard full spacer P/N 017069.
Engineering cross-reference
Reference equivalents for engineering discovery. Catalogue mapping does not imply universal dimensional identity or performance equivalence.
Catalogue reference mapping
Verify torque, bore, speed, BSE and flange type before any cross-manufacturer substitution.
| Dodge Raptor ES | Rexnord Omega spacer reference | TB Woods Dura-Flex spacer reference |
|---|---|---|
| ES20 / 017069 | ES20 | WES20 |
Frequently Asked Questions
Engineering and procurement answers for specification review and quotation.
What is Dodge Raptor ES20?
Dodge Raptor ES20 spacer coupling - standard full spacer P/N 017069, BSE 2.76 to 7.08 in.
What is the Rexnord Omega spacer reference for Dodge Raptor ES20?
Catalogue spacer reference is ES20. Verify BSE, torque and bore before substitution.
How do I request a quote?
Send shaft bore, torque duty, speed and configuration. Golden Bearing Company is an authorised Dodge Industrial distributor.
Request an Engineering Quote
Share Dodge ES20 designation, shaft bore, torque duty and configuration for engineering quotation.
