Manufacturer Regal Rexnord
Viva
Spacer

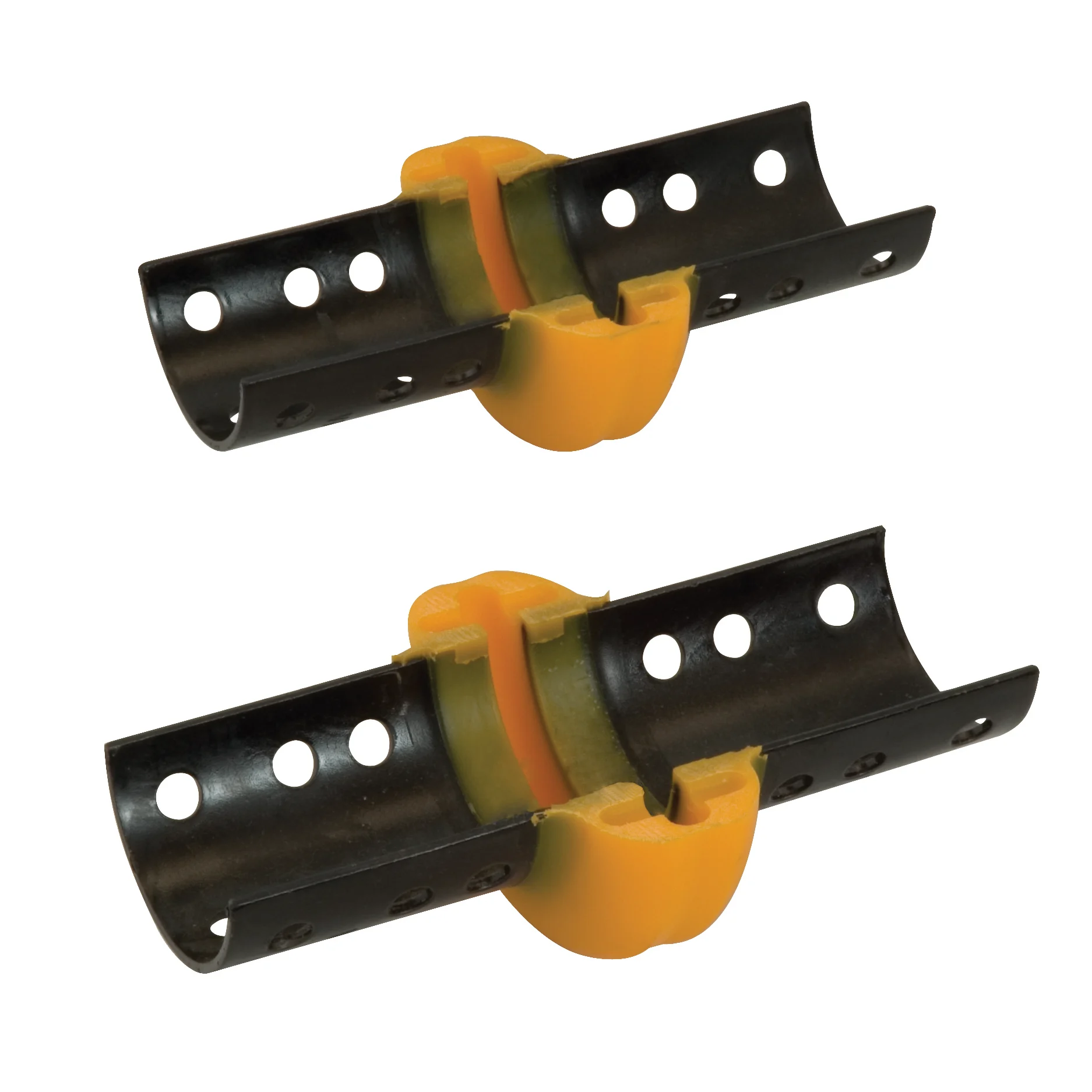

Regal Rexnord Viva VS245 Elastomeric Coupling | Part No. 10287583
Availability
Confirm at quotation
Regal Rexnord · Viva Series · Size VS245
Rated Torque
938 Nm
Maximum Operating Speed
3,700 RPM
Coupling Size Designation
VS245
Maximum Bore Capacity
3.75 in
- Manufacturer
- Regal Rexnord
- Part Number
- 10287583
- Alternate Part Number
- 7392726
- UPC / GTIN
- 793699253016
- Product Family
- Elastomeric
- Series
- Viva
- Designation
- VS245
- Configuration
- Spacer
Viva VS245 spacer elastomeric coupling | 938 Nm nominal torque, 3,700 RPM max, DBSE up to 250 mm
- Product Type
- Elastomeric Coupling
- Industry
- General industrial
- Standard
- ISO R773 keyways; metric bores H7
Why Source Through Golden Bearing Company
Authorised industrial distributor
Engineering Support
Duty review, bore selection, and application engineering assistance
Authorised Manufacturer Data
Specifications published exactly as manufacturer catalogue data
Technical Assistance
Configuration, interchangeability, and spare element guidance
Product Overview
Size VS245 in the Viva Spacer line is specified for industrial drives where published ratings of 938 Nm rated torque and 3,700 RPM maximum speed must be verified against duty requirements. Procurement reference: manufacturer part number 10287583; alternate part number 7392726.
Commercial Identification
Authoritative procurement identifiers for ERP, RFQ, and purchase order entry. Copy values directly where shown.
- Manufacturer
- Regal Rexnord
- Part Number
- 10287583
- Alternate Part Number
- 7392726
- UPC / GTIN
- 793699253016
- Product Family
- Elastomeric
- Series
- Viva
- Designation
- VS245
- Configuration
- Spacer
Engineering Specifications
Manufacturer-published performance ratings and compliance data. Values match the authoritative product record without modification.
Performance Ratings
| Coupling Size Designation | VS245 |
|---|---|
| Rated Torque (Nominal TN) | 938 Nm |
| Peak Torque (Tmax) | 4,960 Nm |
| Maximum Operating Speed | 3,700 RPM |
| Unit Weight | 161 kg |
| Vibration Level | Torsionally soft |
| Alignment Requirement | Hub mounting combination + alignment per |
| Maximum Bore Capacity | 3.75 in |
| Maximum Shaft Gap (VS) | 250 mm |
| High Speed Ring | Not required (VS design upgrade) |
| Unit Weight (max bore hubs) | 16.78 kg |
Alignment & Compliance
| Dimensional Standard | ISO R773 keyways; metric bores H7 |
|---|---|
| Shaft Fit Recommendation | H7 finished bore tolerance |
Dimensions
Physical envelope and mounting dimensions for layout, guard design, and system integration.
| ISO shaft gap options | 100, 140, 180, 250 mm |
|---|---|
| ANSI shaft gap options | 3.5, 5.0, 7.0, 9.5 in |
| Field adjustability | Reversible hubs; optional hole mounting positions |
| Overall length (A) | 9.65 in |
Materials & Configuration
Standard and optional materials, element compounds, and hub types.
Hub Material
Steel
Element Material
Polyurethane membrane on steel shoes
Hub Types
- Pilot Bored (Rough)
- Custom Bored
- Taper-Lock / Magic-Lock
Downloads
Official manufacturer catalogues, engineering drawings, and installation documentation shared across the product family.
Applications
Size VS245 is commonly applied across Pumps, Motors, Equipment Requiring Shaft Spacing (Dbse). Published standards compliance includes ISO R773 keyways; metric bores H7. Verify duty conditions against the full engineering specification tables below before final selection.
Pumps
Motors
Equipment Requiring Shaft Spacing (Dbse)
Compatibility & Accessories
Interchangeability advisories, spare components, and configurable options from the product record.
Hub Configuration
Size VS245 supports Pilot Bored (Rough), Custom Bored, Taper-Lock / Magic-Lock hub types. Refer to Materials & Configuration for full variant detail.
Replacement & Maintenance
Field-replaceable element - element-only replacement supported. Field-replaceable element - element-only replacement supported. Includes coupling element, two hubs, and mounting hardware. Field-replaceable components include Field-replaceable coupling element, Capscrew service kit, High Speed Ring.
Interchangeability & Configuration
Hubs Across V / Vs / Vsx Same V245 Size. Any Omega Component: INT - 01.
Frequently Asked Questions
Engineering and procurement answers for specification review and quotation.
What is the manufacturer part number for Viva VS245?
The Regal Rexnord manufacturer part number for Viva VS245 is 10287583.
What is the rated continuous torque for Viva VS245?
The published rated torque (continuous) is 938 Nm per manufacturer catalogue data for Viva VS245.
What is the maximum operating speed?
The maximum operating speed is 3,700 RPM as published in the engineering specification for Viva VS245.
What is the maximum bore capacity?
Maximum bore capacity is 3.75 in for Viva VS245. Final bore, keyway, and hub type are selected at order configuration.
Who manufactures this coupling?
Regal Rexnord manufactures this product. Golden Bearing Company supplies and supports configuration, quotation, and application guidance.
Is a UPC or GTIN published for Viva VS245?
The published UPC/GTIN identifier is 793699253016 for procurement and inventory systems.
Which dimensional standard applies?
Published dimensional standard compliance is ISO R773 keyways; metric bores H7. Refer to the dimensions table for envelope values.
Can the elastomer element be replaced without removing hubs on Viva VS245?
Viva couplings support field replacement using a weight-matched half-element pair per manufacturer maintenance guidance. Hubs typically remain installed during element replacement.
Are Viva coupling parts interchangeable with Omega?
Viva coupling components are not interchangeable with Omega coupling parts. Confirm Viva size designation and series during replacement and interchange enquiries.
