Rexnord Omega Elastomeric Couplings
Rexnord Omega elastomeric couplings - E-series close-coupled and ES-series spacer configurations with verified torque, speed and bore data in the family catalogue.
Omega coupling overview
Rexnord Omega elastomeric couplings transmit torque through replaceable polyurethane elements between two steel hubs. The design accommodates misalignment and dampens torsional vibration in motor-driven equipment.
Golden Bearing Company is an authorised Regal Rexnord distributor. Omega is a Rexnord-branded family — not a Falk portfolio product.
Standard vs spacer configuration
Close-coupled (standard) hubs mount directly with minimal shaft gap. Spacer configurations use a tubular spacer for pump maintenance access; DBSE dimensions are catalogue-defined for ES-series layouts.
ES-series spacer designations
ES designations denote spacer variants with defined distance between shaft ends for pump maintenance layouts. Rated torque, speed and bore summaries for verified ES sizes appear in the catalogue table below as engineering reference. Spacer sizes follow the same torque class numbering as E-series close-coupled hubs but use different hub and spacer assemblies.
Engineering characteristics
Rated torque, maximum speed, bore capacity and misalignment limits are listed per size in the catalogue table below and on linked product pages where available, sourced from verified Regal Rexnord catalogue data. Element compounds vary for temperature and chemical exposure (standard, heavy-duty and high-speed polyurethane options per manufacturer tables).
Applications
Pumps, compressors, blowers, fans, conveyors, mixers and general industrial drives where periodic element replacement is preferred over metal fatigue in the flexible member.
Selection and quotation
Provide motor power or torque, speed, bore sizes and configuration (standard or spacer). Request a quote or visit the Rexnord couplings hub for related families.
Omega configurations

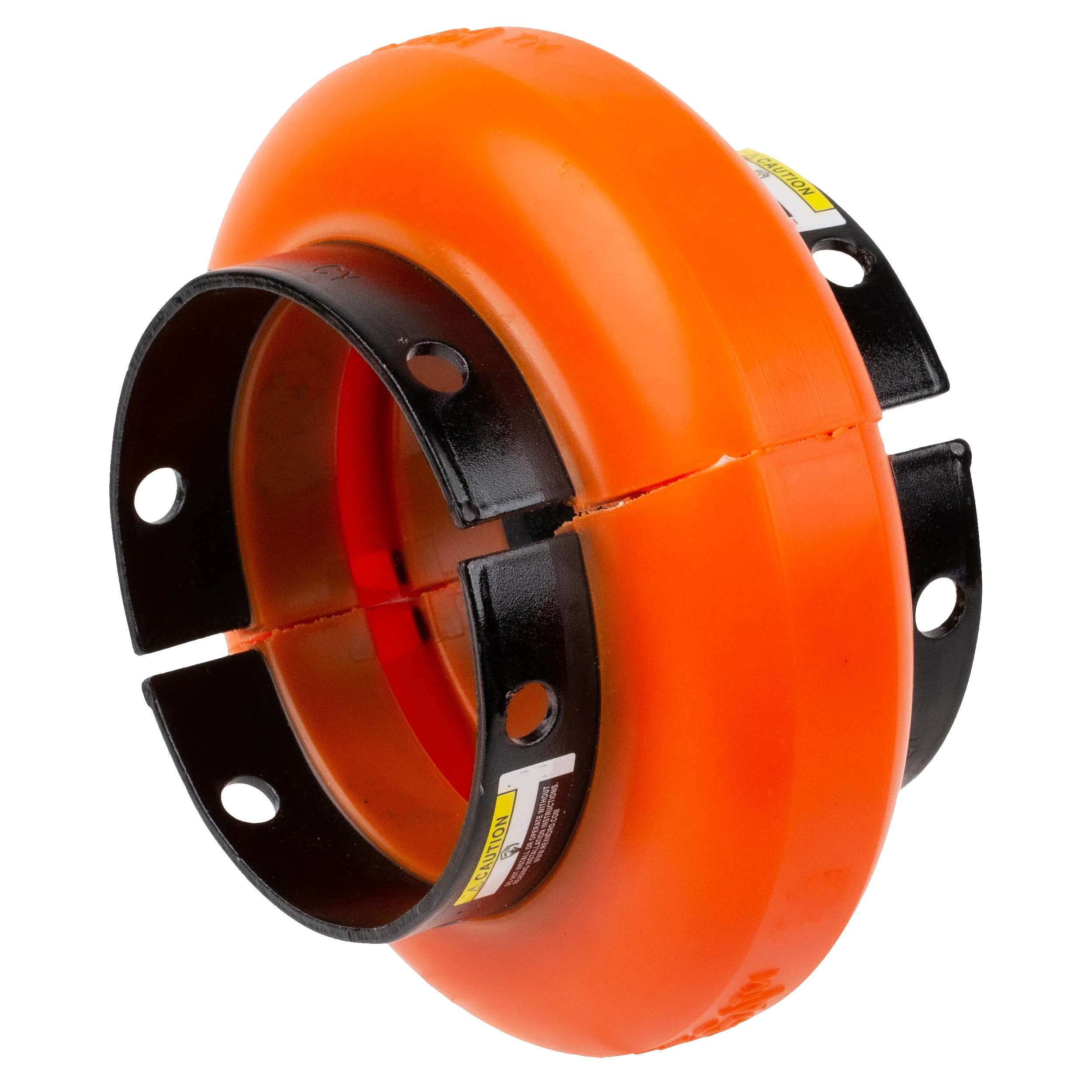

E series
Close-coupled
Minimum distance between shaft ends; common on close-coupled pumps and fans. Verified E designations with rated torque, speed and bore in the catalogue below. Published sizes link to full Golden Bearing Company product pages; other rows are engineering reference.
ES series
Spacer
Removable spacer tube for pump seal and bearing maintenance. ES hubs and assemblies are distinct from E close-coupled lines. Verified ES torque, speed and bore summaries are listed in the catalogue below as engineering reference.
Element replacement
Polyurethane elements can be replaced without moving major equipment on many sizes.
Published Omega sizes and designations
Select a designation for full Golden Bearing Company product details, torque, speed, dimensions, and procurement data.
E series - Close-coupled
16 products
| Designation | Key Ratings | Configuration | Action |
|---|---|---|---|
| E2 | 21 Nm · 6,600 RPM · 1.13 inOmega E2 close-coupled elastomeric coupling - 21 Nm continuous torque, 6,600 RPM max | Close-Coupled (Standard) | View Product |
| E3 | 41 Nm · 6,600 RPM · 1.38 inOmega E3 close-coupled elastomeric coupling - 41 Nm continuous torque, 6,600 RPM max | Close-Coupled (Standard) | View Product |
| E4 | 62 Nm · 6,600 RPM · 1.63 inOmega E4 close-coupled elastomeric coupling - 62 Nm continuous torque, 6,600 RPM max | Close-Coupled (Standard) | View Product |
| E5 | 105 Nm · 6,600 RPM · 1.88 inOmega E5 close-coupled elastomeric coupling - 105 Nm continuous torque, 6,600 RPM max | Close-Coupled (Standard) | View Product |
| E10 | 164 Nm · 6,600 RPM · 2.13 inOmega E10 close-coupled elastomeric coupling - 164 Nm continuous torque, 6,600 RPM max | Close-Coupled (Standard) | View Product |
| E15 | 203 Nm · 6,600 RPM · 2.13 inOmega E15 close-coupled elastomeric coupling - 203 Nm continuous torque, 6,600 RPM max | Close-Coupled (Standard) | View Product |
| E20 | 260 Nm · 6,600 RPM · 2.38 inOmega E20 close-coupled elastomeric coupling - 260 Nm continuous torque, 6,600 RPM max | Close-Coupled (Standard) | View Product |
| E30 | 412 Nm · 5,800 RPM · 2.88 inOmega E30 close-coupled elastomeric coupling - 412 Nm continuous torque, 5,800 RPM max | Close-Coupled (Standard) | View Product |
| E40 | 621 Nm · 5,000 RPM · 3.38 inOmega E40 close-coupled elastomeric coupling - 621 Nm continuous torque, 5,000 RPM max | Close-Coupled (Standard) | View Product |
| E50 | 864 Nm · 4,200 RPM · 3.63 inOmega E50 close-coupled elastomeric coupling - 864 Nm continuous torque, 4,200 RPM max | Close-Coupled (Standard) | View Product |
| E60 | 1,412 Nm · 3,800 RPM · 4 inOmega E60 close-coupled elastomeric coupling - 1,412 Nm continuous torque, 3,800 RPM max | Close-Coupled (Standard) | View Product |
| E70 | 2,500 Nm · 3,600 RPM · 4.5 inOmega E70 close-coupled elastomeric coupling - 2,500 Nm continuous torque, 3,600 RPM max | Close-Coupled (Standard) | View Product |
| E80 | 4,463 Nm · 2,000 RPM · 6 inOmega E80 close-coupled elastomeric coupling - 4,463 Nm continuous torque, 2,000 RPM max | Close-Coupled (Standard) | View Product |
| E100 | 9,609 Nm · 1,900 RPM · 6.75 inOmega E100 close-coupled elastomeric coupling - 9,609 Nm continuous torque, 1,900 RPM max | Close-Coupled (Standard) | View Product |
| E120 | 19,219 Nm · 1,800 RPM · 7.5 inOmega E120 close-coupled elastomeric coupling - 19,219 Nm continuous torque, 1,800 RPM max | Close-Coupled (Standard) | View Product |
| E140 | 38,437 Nm · 1,500 RPM · 9 inOmega E140 close-coupled elastomeric coupling - 38,437 Nm continuous torque, 1,500 RPM max | Close-Coupled (Standard) | View Product |
ES series - Spacer (DBSE)
13 products
| Designation | Key Ratings | Configuration | Action |
|---|---|---|---|
| ES2-R | 21 Nm · 6,600 RPM · 1.13 inOmega ES2-R spacer elastomeric coupling - 21 Nm continuous torque, 6,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES3-R | 41 Nm · 6,600 RPM · 1.38 inOmega ES3-R spacer elastomeric coupling - 41 Nm continuous torque, 6,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES4-R | 62 Nm · 6,600 RPM · 1.63 inOmega ES4-R spacer elastomeric coupling - 62 Nm continuous torque, 6,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES5-R | 105 Nm · 6,600 RPM · 1.88 inOmega ES5-R spacer elastomeric coupling - 105 Nm continuous torque, 6,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES10-R | 164 Nm · 6,600 RPM · 2.13 inOmega ES10-R spacer elastomeric coupling - 164 Nm continuous torque, 6,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES15-R | 203 Nm · 6,600 RPM · 2.13 inOmega ES15-R spacer elastomeric coupling - 203 Nm continuous torque, 6,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES20 | 260 Nm · 4,800 RPM · 2.38 inOmega ES20 spacer elastomeric coupling - 260 Nm continuous torque, 4,800 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES30 | 412 Nm · 4,200 RPM · 2.88 inOmega ES30 spacer elastomeric coupling - 412 Nm continuous torque, 4,200 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES40 | 621 Nm · 3,600 RPM · 3.38 inOmega ES40 spacer elastomeric coupling - 621 Nm continuous torque, 3,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES50 | 864 Nm · 3,100 RPM · 3.63 inOmega ES50 spacer elastomeric coupling - 864 Nm continuous torque, 3,100 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES60 | 1,412 Nm · 2,800 RPM · 4 inOmega ES60 spacer elastomeric coupling - 1,412 Nm continuous torque, 2,800 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES70 | 2,500 Nm · 2,600 RPM · 4.5 inOmega ES70 spacer elastomeric coupling - 2,500 Nm continuous torque, 2,600 RPM max, DBSE capable | Spacer (DBSE) | View Product |
| ES80 | 4,463 Nm · 1,800 RPM · 6 inOmega ES80 spacer elastomeric coupling - 4,463 Nm continuous torque, 1,800 RPM max, DBSE capable | Spacer (DBSE) | View Product |
Have a part number or designation?
Send manufacturer part numbers, bore sizes or coupling designations for engineering identification and quotation support. This is an identification/interchange enquiry—not a live stock lookup or availability confirmation.
Common questions
E50 denotes close-coupled standard configuration; ES50 variants include spacer arrangements with different DBSE dimensions. Confirm against the Rexnord catalogue for your pump layout.
Match required torque (with service factor), maximum speed and bore to the E-series or ES-series tables below. Send duty data for engineering confirmation.
Manufacturer engineering documentation describes interchange relationships between Dodge Raptor and Rexnord Omega for certain size classes, subject to application review. Interchangeability does not imply universal compatibility or automatic authorisation. Send installed coupling details for engineering review.
