KTR · ROTEX GS · Jaw coupling · GS 48
Nominal torque TKN
525 Nm
Max bore
62 mm
Max speed
8000 rpm
Outside dia.
105 mm
- Manufacturer
- KTR
- Product Family
- ROTEX GS Couplings
- Series
- ROTEX GS
- Designation
- GS 48
- Configuration
- ROTEX GS

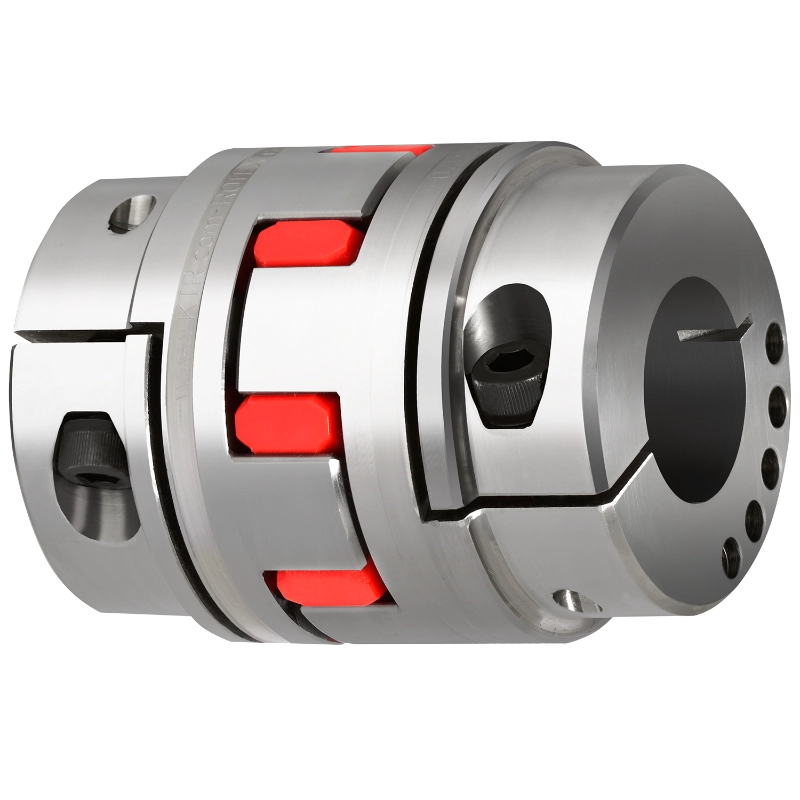

KTR ROTEX GS size 48 catalogue data for engineering selection.
- Product Type
- Jaw coupling
- Industry
- Industrial drives, precision automation
Why Source Through Golden Bearing Company
Authorised industrial distributor
Engineering Support
Duty review, bore selection, and application engineering assistance
Authorised Manufacturer Data
Specifications published exactly as manufacturer catalogue data
Technical Assistance
Configuration, interchangeability, and spare element guidance
Product Overview
KTR GS 48 is a ROTEX GS backlash-free jaw coupling size 48 with Steel hubs. Nominal torque TKN is 525 Nm at 98 ShA-GS spider selection. Catalogue envelope is 105 mm outside diameter by 140 mm overall length with maximum bore 62 mm.
Commercial Identification
Authoritative procurement identifiers for ERP, RFQ, and purchase order entry. Copy values directly where shown.
- Manufacturer
- KTR
- Product Family
- ROTEX GS Couplings
- Series
- ROTEX GS
- Designation
- GS 48
- Configuration
- ROTEX GS
Selection Guidance
Engineering checkpoints when specifying KTR GS 48.
Engineering Specifications
KTR catalogue values for GS 48. Parameters not tabulated for this size are omitted rather than estimated.
Key catalogue specifications
| Designation | GS 48 |
|---|---|
| Nominal torque TKN (98 ShA) | 525 Nm |
| Maximum finished bore | 62 mm |
| Maximum speed (Hub 1.0) | 8000 rpm |
| Hub material | Steel |
| Outside diameter D_H | 105 mm |
| Overall length L | 140 mm |
| Setscrew size | M8 |
| Setscrew tightening torque T_A | 20 Nm |
Misalignment limits
| Axial shift | +2.1 / -1.0 |
|---|---|
| Radial offset | 0.16 mm |
| Angular offset | 0.9 deg |
Dimensions
Mounting envelope dimensions from KTR catalogue tables for layout and drive integration.
Max bore
62 mm
Outside dia. (D_H)
105 mm
Overall length (L)
140 mm
| Maximum finished bore | 62 mm |
|---|---|
| Outside diameter (D_H) | 105 mm |
| Overall length (L) | 140 mm |
| Setscrew size | M8 |
| Setscrew tightening torque T_A | 20 Nm |
KTR Catalogue Reference
Authoritative source for the engineering values published on this page.
Published data basis
Engineering values on this page follow KTR catalogue tables for KTR GS 48. Additional catalogue caveats apply: Alternate hub Type speeds tabulated at 5000 rpm in extract A. Parameters not shown require KTR manufacturer catalogue verification before design sign-off.
Applications
Typical KTR ROTEX GS applications for GS 48.
Industrial jaw coupling
Backlash-free drive
Elastomer spider selection
General machinery
Pump and fan drives
Configuration and Spider Compatibility
Elastomer spider selection for KTR GS 48.
ROTEX GS coupling role
Backlash-free jaw coupling with elastomer spider under compression. Spider hardness governs damping, temperature limits and torsional stiffness.
Compatible elastomer spiders
| Spider | Hardness | Material | Temperature range | Application characteristics |
|---|---|---|---|---|
| 98 ShA-GS | 98 Shore A | Polyurethane | -30 C to +90 C | Standard high-dynamic positioning drives and machine spindles. |
| 57 ShD-GS | 57 Shore D | Polyurethane | -30 C to +90 C | Spindles with high-rated torques; medium-low damping limits. |
| 64 ShD-GS | 64 Shore D | Polyurethane | -20 C to +110 C | High torsional rigidity; suited for heavy-load AC servo drives. |
| 72 ShD-GS | 72 Shore D | Polyurethane | -20 C to +110 C | High torque/torsional rigidity; for indexing tables. |
